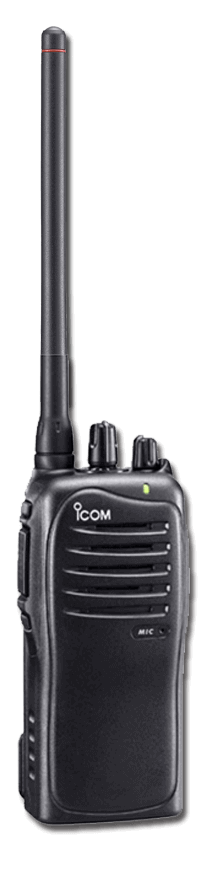

ICOM
F3011 / F4011
Simple Operation for Instant Communication
With only 3 buttons, one volume knob and one 16-position channel knob, the IC-F3011 Series does not require special training to use. The large knobs and positive action buttons are easy-to-operate, even while wearing gloves.
Modern Design, Rugged Body
The IC-F3011 Series is compact (120mm; 4 23⁄32 inch height) and lightweight (approximate 300g; 10.6 oz with BP-232N and antenna). The aluminum die-cast chassis is the basis for this rugged construction, allowing long-life usage in various environments.
Performance Characteristics
Frequency band:
F3011: VHF
F4011: UHF
Frequency range:
F3011: 136–174MHz
F4011: 400-470MHz, 450-512MHz
Power Output:
5W (VHF), 4W (UHF)
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
21 hours (Approximate)
Number of Channels/Groups/Zones:
16 Channels
Channel spacing:
12.5 KHz, 15/30 kHz
Physical Characteristics
Dimensions H x W x D (with standard battery)
53(W) × 120(H) × 38(D) mm
Weight (with standard battery)
300g; 10.6oz
Keypad / Keys
None
Display
None
User Environment
Operating temperature
-30°C to +60°C; -22°F to +140°F
Mil spec
810 F
IP Standards
IP54
MIL-STD and IP54 Rugged Construction
The radio is tested to MIL-STD 810 specifications and to the IP54 rating for dust protection and water resistance. The IC-F3011 Series is built to take harsh use and keep working.
Lithium-Ion Battery Standard
The IC-F3011 Series comes with a high-capacity 2000mAh (typ.) Li-ion battery pack, BP-232N, as standard. The BP-232N offers up to 16 hours* of operation.
* VHF typical operation with TX: RX: Stand-by ratio=5:5:90.
CTCSS/DTCS Tone Encoder/Decoder
The IC-F3011 Series has the built-in CTCSS and DTCS capabilities as standard to access a repeater or to set up your own talk group for quiet stand-by.
Rapid Battery Charger Supplied
The rapid desktop charger, BC-160 and AC adapter BC-145 is supplied with the radio. It charges the BP-232N Li-ion battery in 3 hours (approx.)
Automatic Scanning and Priority Scan
The power on scan function automatically starts scanning when turning on the radio. The priority scan function scans all programmed channels in sequence, while monitoring the priority channel.
Other Features
- Low battery alert with blinking LED and low battery beep
- Wide frequency coverage (136-174, 400-470 and 450-512MHz)
- PC Programming capability
- 3-color LED (Red, Green, Orange)
- Talk around function
- Time-out timer
- Optional VOX headset
- 2-step power save
Brochure
 | FASC25U 400-430MHz Antenna for LM portables |
 | FASC25V 136-150MHz Antenna for LM portables |
 | FASC26US 400-450MHz Stubby antenna for LM portables |
 | FASC26VS 136-144MHz Stubby antenna for LM portables |
 | FASC27VS 142-150MHz Stubby antenna for LM portables |
 | FASC28V 142-162MHz Antenna for LM portables |
 | FASC29V 160-174MHz Antenna for LM portables |
 | FASC55V 146-174MHz Standard antenna for LM portables |
 | FASC56VS 150-160MHz Stubby antenna for LM portables |
 | FASC57U 430-470MHz Standard antenna for LM radios (red ring) |
 | FASC57VS 160-174MHz Stubby antenna for LM portables |
| FASC61UC 380-520MHz Cut antenna for the specific frequency desired |
| FASC61VC 136-174MHz Cut antenna for the specific frequency desired |
| FASC62V 150-160MHz High gain antenna for LM portables (10") |
| FASC63V 155-165MHz High gain antenna for LM portables (9.5") |
 | FASC72U 470-512MHz Antenna for LM portables |
 | FASC73US 450-470MHz Stubby antenna for LM portable radios |
| LAIRD EXH 160 MXI 155-160MHz Antenna |
| LARSEN SPHL10160IC 151-163MHz Helical ¼ wave antenna center tuned to 157MHz |
 | BP232H Battery Li-ion 7.4V 2300mAh |
 | BP240 Battery case that holds 6 AAA alkaline batteries |
| AW STUD/SWIVEL KIT Metal stud that slides on like a belt clip and it's attached to a strong metal swivel belt clip |
 | AW SWIVEL Swivel clip used with the AW Stud/Swivel Kit. |
| MB93 Swivel belt clip |
 | MB94 Alligator belt clip |
 | MB94R Alligator belt clip with long clip that angles the antenna/top of radio off the body |
 | MB96N Swivel belt hanger to use with standard belt clip |
 | OPC515L DC power cable for single-unit rapid chargers |
 | OPC656 DC power cable for gang charger |
 | LCF14 SWIVEL Leather carrying case with a swivel |
| NCF14 CLIP Nylon carrying case with a clip |
 | AD106 Adapter cup for the BC119N/BC121N for the radios with the BP232N/H battery |
 | AD122 Adapter cup that fits into the BC197 22/23 for the BP232N/H batteries |
| BC123SA AC adapter for rapid chargers |
 | BC157S AC adapter for gang chargers |
 | BC160 Rapid charger for radios with the BP230/231/232 battery |
 | BC197 22 6-unit charger for radios with the BP232N/H Li-ion battery (includes AC adapter and cups installed) |
 | CP23L 12V cigarette lighter cable for use with rapid chargers |
 | MB130 Vehicle charger bracket holds rapid charger and requires cigarette lighter cable |
 | HS94 Earpiece headset |
 | HS95 Headset with boom microphone |
 | HS97 Earphone with throat mic headset |
 | OTTO V4EX2CS5 Explorer lightweight headset with flexible earloop w/boom mic (2-pin right angle screw down connector) |
 | VS1L VOX/PTT case with 2-pin right angle connector. |
| HM-HD7I7WP Large waterproof speaker microphone with 3.5mm accessory jack |
 | HM158LA Compact speaker microphone with revolving clip and earphone jack |
 | HM159LA Large speaker microphone with earphone jack and metal alligator clip |
| IMPACT HD3-I3 Heavy duty speaker microhpone with 3.5mm accessory jack |
 | OTTO V110282 Speaker microphone earpiece |
 | OTTO V110433 Speaker microphone earpiece |
 | OTTO V2C2CS11 Legacy speaker microphone |
| SP-AT1 Single pin listen only w/QD acoustic tube |
| IAS BC-RHADPTR Charger adapter 100-240V for use with the IAS OPC-RHUSB |
| IAS BC-RHCHG1 RedHawk microphone single-unit charger 100-240V |
| IAS BC-RHCHG12 RedHawk microphone 12-unit charger 100-240V |
| IAS BP-RHBATT1 RedHawk microphone 3.8V 1200mAh battery |
| IAS CP-RHLP Cigarette lighter plug 12-24V requires 2 USB cables |
| IAS CS-RHSW Utility software to upload stored tracks, optional PC programming, online demos. |
| IAS OPC-RHI2 RedHawk 2-pin cable connects GPS mic to radio |
| IAS OPC-RHUSB USB cable to connect mic with PC or charger adapter. |
| IAS REDHAWK Speaker microhpone with GPS receiver. |
 | HM128L Speaker microhpone with GPS receiver. |
| HM128L Earphone/microphone with 2-pin right angle connector |
| HM153LA Covert durable microphone with earphone combination |
