KENWOOD TK-2312

KENWOOD

TK-2312/3312

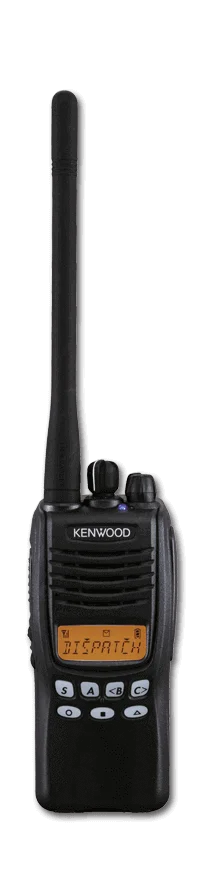

The KENWOOD TK-2312 and TK-3312 are thin and compact yet packed with features for intuitive operation, impressive performance, and all-weather reliability. Front and side programmable function keys allow for customized convenience, and KENWOOD’s renowned audio clarity means the message gets through loud and clear.

The KENWOOD TK-2312 and TK-3312 VHF/UHF conventional portables are both 5-watt, 128 channel high-performance radios suitable for public safety agencies and business/industrial settings. Built on a performance platform new to KENWOOD portables, they feature an 8-digit display with RSSI & Function/Status Icons, 4-color LED, nine PF keys and come with a lightweight 2000 mAh Li-ion battery. Both versions meet MIL-STD 810 C/D/E/F/G as well as IP54/55 for water & dust intrusion.

Frequency Band:
VHF/UHF

Frequency Range:
136-174 MHz (TK-2312) / 450-520 MHz, 400-470 MHz (TK-3312)

Power Output:
1W - 5W

Standard battery chemistry type:

Battery life (based on a 5-5-90 duty cycle):
10 Hours

Number of Channels/Groups/Zones:
128 Channels / 128 Zones

Channel spacing:
25 kHz / 12.5 kHz

Dimensions W x H x D (with standard battery)
2.13 x 4.8 x 1.65 in

Weight (with standard battery)
13.4 oz

Keypad / Keys
9 PF Keys Type and 6PF Keys + 12 Keypad Type

Display
8 Character, 13 Segment Backlit LCD

Operating temperature
-22˚ F to + 140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP-54/55

  • 5 W (136-174 MHz) Model
  • 5 W (450-520, 400-470 MHz) Models
  • Conventional Zones
  • Single Priority Scan
  • Single & Multi-Zone Scan
  • 8 Character Alphanumeric Aliases
  • Backlit LCD
  • Function / Status LCD Icons
  • RSSI Indicator
  • Transmit / Busy / Call Alert / Warn LED
  • 4-Color LED (Blue/Red/Green/Orange)
  • 7 Front Panel PF keys
  • 2 Side PF Keys
  • 500 mW Audio Power
  • Enhanced KENWOOD Audio
  • Companded Audio (per CH)
  • VOX Ready
  • Voice Inversion Scrambler Built-in
  • 16 Scrambler Codes (per CH)
  • Emergency Call Features
  • Lone Worker Alert
  • QT / DQT
  • Two-Tone Decode
  • Single / Two-Tone Encode
  • Operator Selectable Tone
  • DTMF Encode / Decode
  • FleetSync®/MDC-1200 (per Zone)
  • Special Alert Tone Pattern
  • Call Key
  • Time Out Timer
  • Busy Channel Lockout
  • LCD Battery Status Indicator
  • Low Battery Alert
  • Battery Saver
  • Windows® Programming & Tuning
  • Wireless Cloning
  • Password Protection
KRA-22M

KRA-22M

VHF low-profile antenna 148-162 MHz

KRA-22M2

KRA-22M

VHF low-profile antenna 162-174 MHz

KRA-22M3

KRA-22M

VHF Low-profile helical antenna 136-150 MHz

KRA-23M

KRA-23M

UHF low-profile antenna 450-490 MHz

KRA-23M2

KRA-23M2

UHF low-profile antenna 470-520 MHz

KRA-23M3

KRA-23M3

UHF Low-profile helical antenna 403-430 MHz

KRA-26M

KRA-26M

VHF helical antenna 146-162 MHz

KRA-26M2

KRA-26M2

VHF helical antenna 162-174 MHz

KRA-26M3

KRA-26M3

VHF helical antenna 136-150 MHz

KRA-27M

KRA-27M

UHF whip antenna 440-490 MHz

KRA-27M2

KRA-27M2

UHF whip antenna 470-520 MHz

KRA-27M3

KRA-27M3

UHF whip antenna 400-450 MHz

KMB-28AK

KMB-28AK

Six Unit Charger Adapter for the KSC-23BK/28/35SK chargers (chargers not included)
Note: The six KSC-xx AC wall Adapters are NOT used in the KMB-28 installation A supplied in-line AC-DC switching power supply with six DC plugs supply the six installed KSC-xx charger bases. This unit is lower profile and less weight than similar Kenwood six unit charger adapters.

KNB-29N

KNB-29N

1500 mAh, NiMH battery - requires KSC-43K charger

KNB-45L

KNB-45L

2000 mAh, Li-ion battery - requires KSC-35K/SK charger

KNB-69L

KNB-69L

2550 mAh, Li-ion battery - requires KSC-35K/SK charger

KSC-35SK

KSC-35SK

110~220 volt Fast rate single unit charger for KNB-45L/69L

KSC-43K

KSC-43K

110~220 volt Fast rate single unit charger for KNB-29N/45L/69L

KVC-22

KVC-22

110~220 volt Fast rate DC vehicular charger adapter for KSC-35SK charger & KNB-45L Li-ion battery (charger not included)

KBH-10

KBH-10

Spring action belt clip

No Image Available

KBH-8DS

Leather swivel belt loop with portable D-Ring attachment

No Image Available

KLH-178

Heavy-duty leather carrying case for TK-2312/3312

No Image Available

KLH-6SW

Leather swivel belt loop / detachable swivel D-Ring back

KEP-1

KEP-1

3.5mm earphone kit for KMC-48GPS Speaker Mics

KEP-2

KEP-2

2.5mm earphone kit for KMC-17/45D Speaker Mic
[KEP-2 & KMC-21 are not plug-compatible]

KHS-10

KHS-10D-BH

Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT

KHS-10

KHS-10D-OH

Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT

No Image Available

KHS-22

Behind-the-Head Headset with flexible boom mic and in-line PTT single ear

KHS-26

KHS-26

Clip Mic w/earphone

KHS-27

KHS-27A

D-Ring Ear Hanger w/PTT & Mic

No Image Available

KHS-31C

C-Ring Ear Hanger w/PTT & Mic

KHS-7

KHS-7

Single muff headset w/boom mic

KHS-7

KHS-7A

Lt. Wt Single muff headset w/boom mic & in-line PTT

KHS-8

KHS-8BL

Two-Wire palm mic w/earphone (black)

KHS-9

KHS-9BL

Three-Wire lapel mic w/earphone (black)

No Image Available

KMC-21

Compact speaker microphone

KMC-45

KMC-45D

MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack)

KMC-48GPS

KMC-48GPS

GPS Speaker Microphone

  • TK-2312K 136-174 MHz VHF 5W, 128 Ch.
  • TK-3312K 450-520 MHz UHF 5W, 128 Ch.
  • TK-3312K2 400-470 MHz UHF 5W, 128 Ch.
