KENWOOD

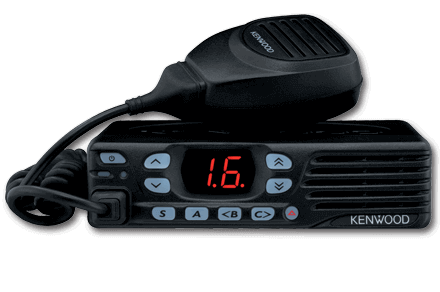

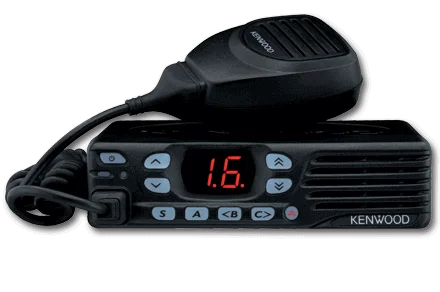

KENWOOD's TK-7302HV and TK-8302HU mobile radios deliver reliable mobile performance with extra wideband coverage (UHF: 70MHz) and such features as QT/DQT signaling, multiple scan functions and a voice inversion scrambler. Yet these tough IP54/MIL-STD-compliant radios are decidedly user-friendly, providing high-quality audio, voice announcement, and large displays with adjustable brightness for simple operation, day and night.
Frequency Band:
VHF/ UHF
Frequency Range:
136-174 MHz / 450-520 MHz
Power Output:
5W - 25W, 5W - 50W, 5W - 45 W
Number of Channels/Groups/Zones:
16 Channels / 2 Zones
Channel spacing:
25 kHz Wide /12.5 kHz Narrow
Dimensions W x H x D
6.3 x 1.7 x 5.4 in
Weight
41.6 oz
Keypad / Keys
9 Programmable Function Keys
Display
2-Digit LED Channel Display
Operating temperature
-22˚ F to + 140˚ F
Mil spec
MIL-STD-810 C/D/E/F
IP Standards
IP54/55
 | KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). |
 | KMC-59C Control Station Desktop Microphone (8-pin mod. plug) |
 | KMC-9C Control Station Desktop Microphone (8-pin mod. plug) |
| KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak) |
 | KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in) |
 | KES-5 External speaker, 40W max input |
 | KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied |
 | KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug) |
 | KCT-18 Ignition sense cable (requires KCT-60M Acc. Cable Option) |
 | KCT-36 Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft) |
 | KCT-60M DB15-to-15pin Molex Adapter Cable |
 | KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max). |
 | KMB-10 Key lock adapter |
